The following instructions for Filtration/Sterilisation Systems are for you to assist in the assembly process. Some customers will want to install their system themselves (DIY), while others will engage a qualified plumber.

You can prepare the system by assembling the unit, fixing to posts or walls and ensuring all components are serviceable.

Tank Cleaning is a major part of your PWS business. However, Filtration/Sterilisation units are a very profitable aspect that can create a great add-on sale but can develop into an annual servicing income.

There are a wide variety of filtration systems available on the market. PWSA, over many years, has tried and tested most that are available on the market. The products we use are the best for the task at hand, and the most cost efficient for the quality we are receiving.

We don’t believe in ‘skimping’ when it comes to providing pure drinking water services!

Through the years of developing solutions for clients, PWSA has derived some very versatile solutions that will cater for all customer needs. There are several different types of Filtration/Sterilisation categories with various solutions. These include:

* While Carbon filters can be installed on Whole of House systems, PWSA does not recommend installing on Rainwater Tanks as this will hide the smell/odour when there is a problem with the water supply. This means the customer will not be able to identify if a problem exists.

The customers water will still be safe to drink if a UV/filtration system is installed without a Carbon filter

8.1 System Selection/Design

To the customer, filters are just filters. They don’t understand the difference between one filter cartridge to the next. And for more advanced systems such as UltraViolet or Reverse Osmosis, this can be a little too complicated.

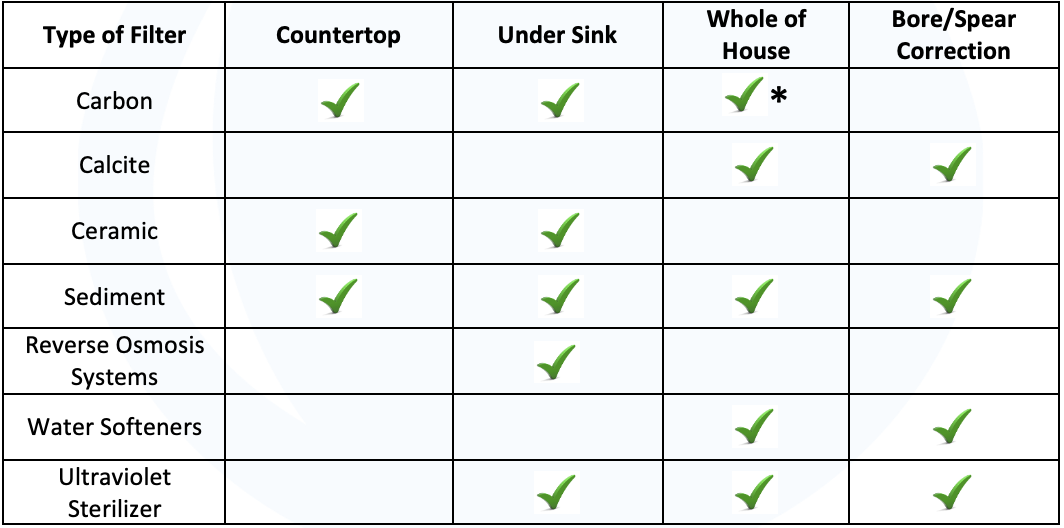

When you are conducting an assessment or quote, you will need to be clear about the benefits of why you have selected one filter over another, and at times, justify the cost.

In providing a filtration/sterilization system for the customer, you will need to choose products based on some of the following assessment criteria:

pH levels of the water

Metal elements found in water testing

Type of Tank (Galvanised, Poly, Concrete)

Type of roof/runoff area (metal, ceramic, slate, wooden)

Volume of water required

Water pressure/pump system

Distance from houses and/or elevation differences

PWSA has developed standardized packages to suit the needs of the majority of customers. These are cost effective and suitable for the common requirements typically found across the country.

But there will be variations that will require adjustments to the standard set-up. This is where your expertise as a PWS Operator is worth its weight in gold. With the expertise and assistance offered by the PWS Technical Team, you will provide the ideal water filtration system for your customers’ needs.

Filtration kits can be supplied in ½ inch and ¼ inch fittings. The use of one over another can be the personal preference of the operator or derived by the fittings at the customer’s property.

8.2 Process & Procedure

Installations of filter/sterilisation systems, no matter the type of set-up, follows a similar process:

8.2.1 Safety Tips

Use only cartridges suitable for this appliance.
Flush system for 5-10 minutes at a medium rate after a period of non-use exceeding 30 days.
Gloves and eye protection not required for this task as no chemicals are used.
Be aware that electrical cables may be found near the work area.
Refer to Module 6: Health and Safety, Safe Handling of Chemicals section

8.2.2 Time Required

Ensure sufficient travel time to arrive at job on time
The time required to complete this task will vary depending on situation and difficulty with sink and undersink access, or location of Rainwater Tank/Pump and if posts and frames are required.
Time to next job

System	Estimated Time
Whole of House System	2.5 hours
Undersink System	0.5 hours to 1 hour
Countertop System	0.5 hours
Softener	2.5 hours to 4 hours

8.2.3 Equipment/Tools Required for Supply & Assembly

Spanner sizes may differ depending on ¼ or ½ inch systems.

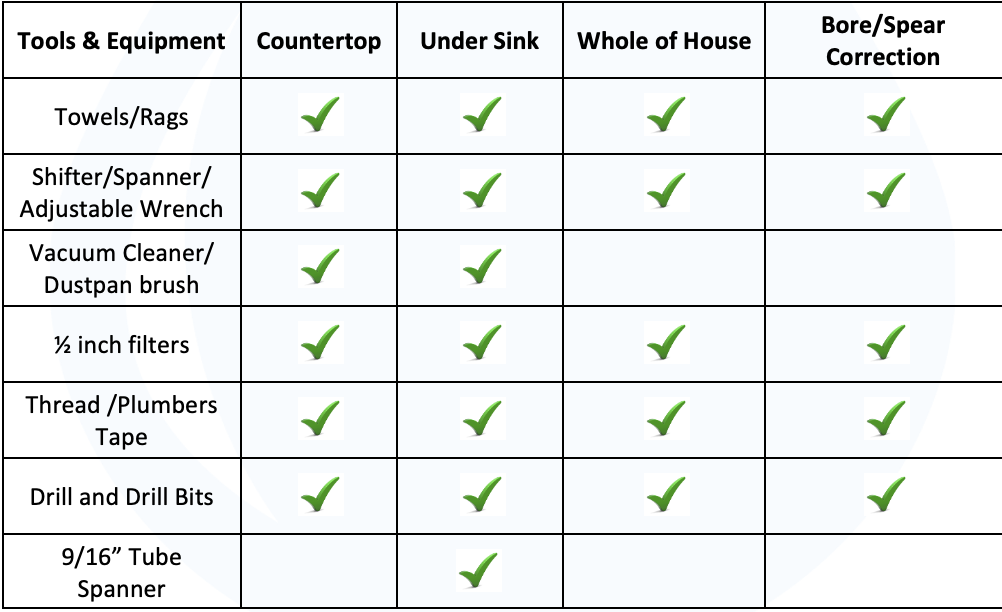

The following are the generic tools/equipment required for the supply and assembly of filtration/sterilization systems:

Thread Tape
9/16” Tube Spanner
Drill and drill bits
Adjustable wrench
Loxeal Thread Sealant*
Clean towels/rags
Shifter/Spanner
Vacuum cleaner/dustpan and brush
Multi-grips
Poly Fittings
Poly Pipe
Pipe Cutter
Chamfer Tool

* Loxeal is to be used on Metal Threads only. Use on Plastics can cause some plastics to melt.

Example:

8.3 Preparation for Filtration Systems Supply & Assembly

It is assumed that prior to supplying, you have conducted an Assessment/Quote with the customer, resulting in a confirmation for product & services.

This may require ordering of products (see Section 4 of this Module), and scheduling with the customer for day/time of supply.

You will already have the customer loaded in PODAC, have details of the job/task, and have client details ready for when you arrive at the premises.

Preparation will make the task/job and experience much quicker, and professional in front of the customer. We recommend some of the following tasks to assist in expediting the job:

Prepare invoice: not all information, such as price etc. Just in case there is an adjustment. However, you can pre-fill in the customers details and scheduled tasks
Equipment: Make sure that your equipment is in working order, and that you are ready for the job. Fuel for the pump, waste bucket, towels, etc.
Product: having the right products for any situation, saving you time and money.
Installation location: Every location will differ. As part of your Assessment/Quoting, you will need to establish where the Filter/Sterilisation unit will be installed, and if any special requirements such as backing boards or custom-made posts will be required. This should be included in your quote and discussed with the customer.

For instructions on Assessing/Quoting for a Tank Clean, please refer to Module 5, Section 5.0.

8.3.1 Product Ordering

The job cannot be completed unless you have the required stock on hand or have placed an order through the PODAC system.

Details on how to Order Products can be found in Section 4.0 of this Module.

Before you head off to start the job, make sure you have everything you need. Not just the ordered items, but the commonly used items such as plumbers tape, joiners, screws, sanitiser, food grade grease, etc.

8.3.2 Kit Building

For the most part, filter-housing kits will be prepared at the PWSA Warehouse, with any special requests, when you order the products.

Some assembly may be required, joining specific units together and connecting pipework.

Instructions may be included where necessary. However, you will need to ensure you know what components are needed, and where they need to be connected. Training is provided during the induction program, however, if you have any questions, call the PWSA Head Office Technical team.

8.3.3 Additional Services

Some customers may require additional services in the installation of their filtration/sterilization system.

If you are qualified in undertaking the additional task, you will need to quote and provide the service accordingly. Alternatively, you may need to outsource, and advise the customer of additional charges associated.

Backing Boards & Frames

Some installations may require building backing boards and frames to support the filter/steriliser units. When you provided an Assessment/Quote for the job, you should already have identified if a custom frame will be required.

You will need to be prepared with any materials required for the building of frames, and additional tools.

However, if you do not have the experience in building frames and backing boards, then you can advise that you will need to outsource to a qualified tradesperson, or advise the customer what is required so they can provide the appropriate structure for you to secure the filtration/UV system.

Electrical Installations

When you Assess and Quote for the supply of UV or Filtration systems, you will determine whether there is a sufficient power source at a suitable location.

Your customer should have available electricity on the premises. Whether that is in the house for undersink, outside the house, or near the tank/pump unit.

In particular, UV sterilisation units require power. These simply plug into a power socket, not requiring an electrician for installation. However, it is advisable for UV ballasts to be plugged into a separate power outlet that is not powering the pump. I.e. don’t use double adaptors. This can cause power surges as the pump is constantly switching on and off.

If a suitable power source is not available however, and unless you are a certified/qualified electrician, you may require an electrical socket to be installed in a suitable location. In which case, the customer can organise, or you may agree for you to organise.

Pump servicing/Installations

Installations or servicing of Pumps is not the core business of Pristine Water Systems.

In many scenarios, PWS operators who have the experience may assist the customer, however, we recommend to refer the customer to an experienced person/business that can best suit their needs.

Most Tank Water pumps are plug and play. That is, they are connected directly to a power socket after being connected to the water supply system. Hence, if there are any issues, the customer may need to replace or have the pump serviced/repaired.

Some PWS Operators have carried spare pumps to assist the customer in maintaining water supply while their pump is being repaired or replaced. Be aware that is an additional cost to you for purchasing and maintaining the pump.

PWSA can provide details of suitable pump systems on request.

8.4 Arrival/Set-up

In majority of jobs, you will have already met the customer and most likely have built a rapport. When arriving to supply filter/sterilising systems, remember that you will either be entering the customers home, or you will be walking around the premises.

Remember at all times, to be courteous and respectful of their home. Especially if entering the premises. Check your boots; take plenty of towels for spillage; clean your hands if required.

8.4.1 Meet & Greet

If not previously organised with the customer, park your vehicle in an appropriate spot at the front of the property, where you can approach the front door to contact the customer.

In many scenarios, the customer will see you coming and meet you out front.

Be courteous in your greetings. Again, in most scenarios you will have already met the customer.

Once you have established introductions, you will want to get the job underway.

On arrival at the job, converse with the owner and understand the exact service required, cross referencing with quote
Define suitable area to park vehicle for easy accessibility

8.4.2 Setting Up

It is best practice to unpack what you need for the task only.

Ferry the required equipment and product to the location where the filtration/sterilization system will be installed.

Inspect the area for hazards that might cause problems, and clear the area of debris, or if an undersink system, remove items from cupboards.

Layout the required tools, unbox the product/s, and if indoors, lay towels in appropriate areas to ensure water spillage won’t damage the premises.

Confirm you have all the tools and equipment available.

8.5 Operations

Following are the different systems that you may supply:

Whole of House System
Single Blue
Twin Blue
Triple Blue
Ultraviolet System
Under Sink
Counter-top
Reverse Osmosis
Water Softeners

For instructions in assembling each of these various kits, please refer to manufacturers instructions, or the specific instructions provided through the rest of this Section in the manual.

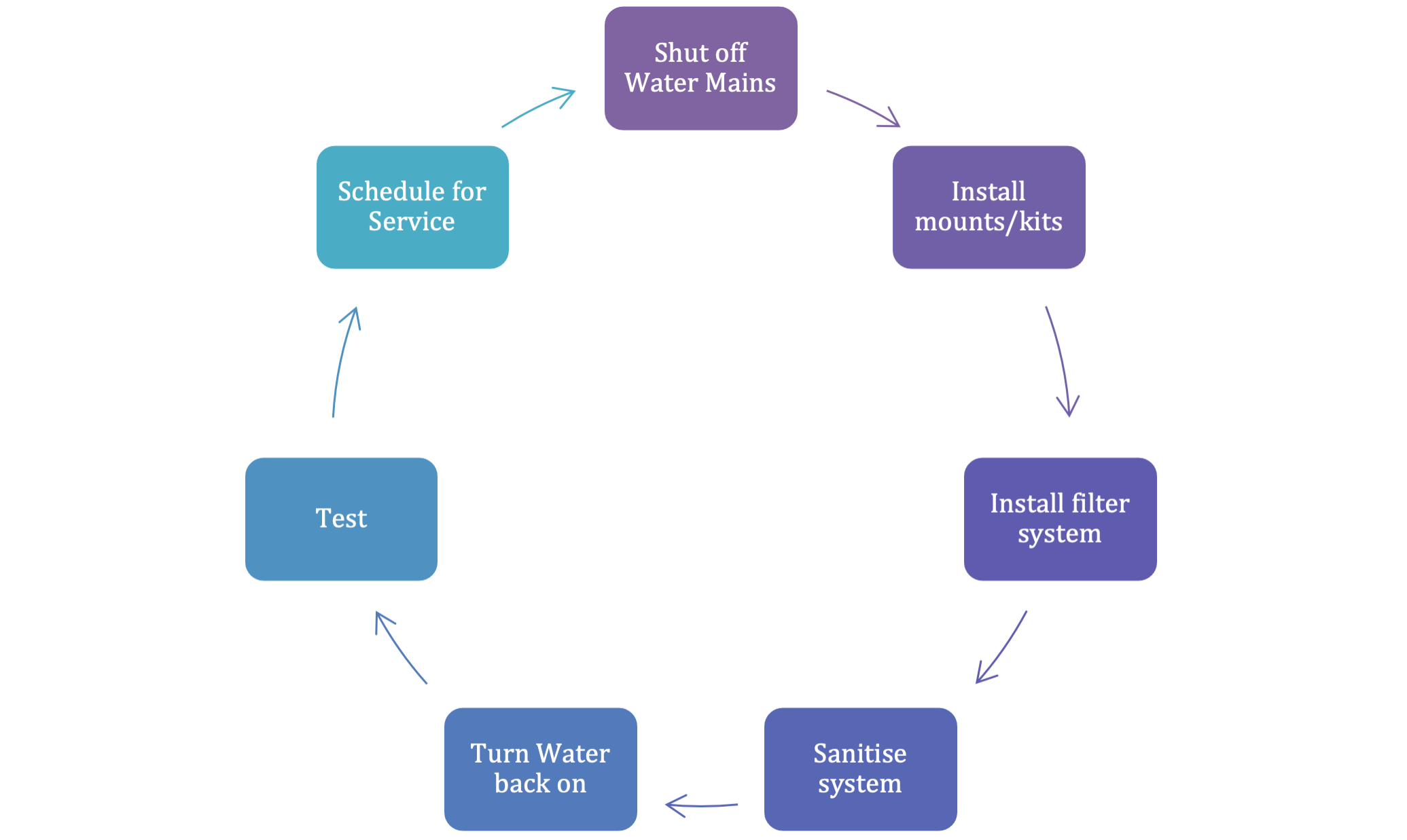

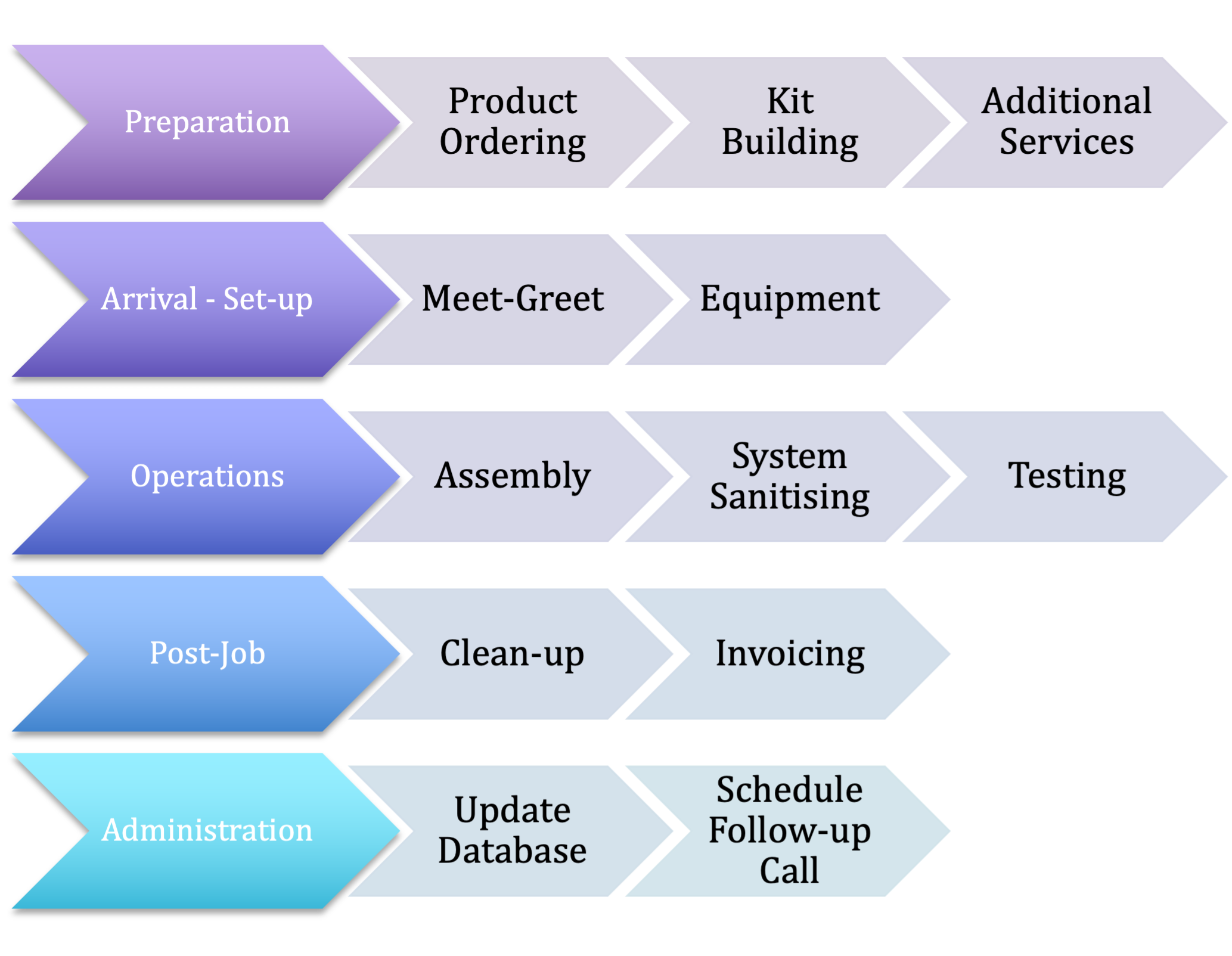

A broad overview of the steps required for installation are:

8.5.1 System Assembly

Task	Equipment Required
Switch off water mains
Locate the water mains tap, and switch to the off position. You will need to run the water through the taps to ensure there is no pressure left.
Mount Housings and Backing boards
With the designated location for the filtration system, prepare the site for installation. Clear the area of debris.
Measure where fixing points need to be placed. Drill holes where required	Measuring Tape Drill/bits (masonry)
Fix housings/backing boards	Bolts/Screws
Sanitise filter housings (undersink, Whole of House), and water supply lines (for Tank systems only – from tank to filter)	Refer to section 6.0 for correct dosage rates
Connect units to water supply	Poly fittings or if possible, poly to copper fittings (If plumber is not required)

8.5.2 Testing

Once the system has been installed, we need to test and ensure there are no problems.

Some of the key things you need to observe are:

Any water leaks around joins
Flow rates at taps
Air lock from/or to pump and or house

Task	Equipment Required
Water leaks/Joints	Plumbing Tape
Flow Rates	Pressure testing device

8.6 Clean-up - Invoicing

Now that the operational side of installing a filtration unit is completed, the job isn’t quite finished yet!

We now need to clean up the area, clean and pack our equipment and then provide an invoice to the customer

8.6.1 Clean-Up

Task	Equipment Required
Always leave clients premises clean and dry. Remove off cuts, rubbish and used packaging, and put into bins or carry offsite.	Old towels
Equipment should have minimal cleaning requirements.

8.6.2 Pack-Up

Task	Equipment Required
Ensure all equipment has been retrieved, packed into toolboxes, and replaced back onto your vehicle.
Carefully roll up all hoses and pack up equipment being careful to replace them in a clean and tidy manner.
Tag Job with provided PWS stickers	PWS stickers
As you are packing equipment, check functionality to ensure you do not have any damaged or broken equipment.

8.6.3 Invoicing

Task	Equipment Required
Complete invoice and hand to client.
Hand client Business Card and relevant brochures related to their filtration unit

8.7 Administration

The final tasks for Supply & Assembly of Filtration/Sterilisation systems are all about you managing your business.

The stricter you are in following this process, the easier it will be to manage and grow your business. PWS has developed these processes through many years of trial and error.

Reality is, this works!

We have many successful franchisees who can attest to these processes.

The key tasks include:

Updating the client profile in PODAC
Scheduling a date to contact for follow-up servicing, dependant on the required product needs

If the filters are doing their job, they will need replacing. This may be between 6 to 12 months, depending on the product and the water supply.

8.7.1 Updating Database

After completing the job, either at home or from a tablet/phone in the field, enter the details of the job into the “database”.

Refer to Module 2, Section 4.4 for details on how to update client details

8.7.2 Scheduling Follow-Up

The PWS sticker will require a date for filter replacement/servicing. This will be 6 to 12-months, depending on the system and expected usage.

Make a note of the date in your diary, and subsequently enter an appropriate follow-up date.

Module 2, Section 4.4 provides details on how to update customer details for follow-up.

8.8 Variations influencing Installations

Town water where cutting of Copper piping, will require a licenced plumber.
Water Pressure/Pumps
Distance of tank/pump from house
Elevation variations
Undersink Access
Sunlight onto systems/UV/Calcite

8.9 Whole of House System Assembly & Supply

A Whole of House (WoH) filtration system filters all water into the house, whether it is tank or town water. And will sterilise with the addition of an UltraViolet (UV) system.

8.9.1 Process steps

Step 1: Turn of water mains

Step 2: Release pressure from external tap/faucet

Step 3: Assess area where the unit will be install. Denote what tools are required.

Step 4: Set up system, and mark out holes/posts where needed to ensure a nice tidy setup.

Step 5: Drill holes/cement or bolt posts in/on wall/ground

Step 6: Attach unit and all necessary plumbing

Step 7: Install filters/UV quartz, ballast, lamps etc.

Step 8: Run water and check for leaks

8.10 Undersink Filter Assembly/Supply

Following are the steps required to be followed for the installation of water filter systems into Under Sink facilities.

NB: National and Local plumbing laws may prohibit the initial fitting/installation of a water filtration system by persons other than a licensed plumber. Please ensure that you abide by the appropriate plumbing rules and regulations in your State.

In most cases, this will be inside the client’s premises. It is extremely important that you present well, ensuring a clean uniform and that equipment used for this task is kept tidy and not strewn across the floor in a messy fashion.

Many customers will judge your level of service in how you treat their home!

To complete this task, you will need to achieve the following steps:

Installation of Water Supply Connector
Installation of Faucet
Mounting the Purification System
Start up Procedure

For correct operation of this appliance it is essential to observe the manufacturers instructions

This system is not UV resistant. Install only out of direct sunlight.

This system must be mounted in a vertical position and must be positioned to allow access for service and filter cartridge changing. At the same time, the assembly should be relatively near the faucet to maximise flow rate.

Connection should be done by a licensed plumber.

8.10.1 Operations

Task	Equipment Required
Installation of Water Supply Connector
Turn off the water connection under your sink or the main water supply. Open the tap to release the pressure.

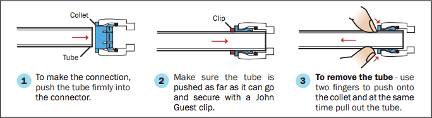

Remove filter unit from carton and screw John Guest elbows into inlet and outlet sides of the filter unit, using thread tape	Spanner John Guest elbows
Remove filter bodies from the lids and load with filters, sediment to the left hand side, inlet side and carbon to the right hand side, discharge side, replace the bodies and tighten with spanner supplied.	Spanner – Full round small, or half round
Remove existing flexible hose from cold-water inlet and install JG tee. The Copper pipe and nipple will fit into the female end of the flex will screw onto the male end of the tee.	Spanner
If pressure exceeds 600kpa (85psi), an inline pressure limiting valve must be fitted to ¼” systems. For ½” Brass Systems this must be screwed onto the mini cistern valve.
If installation is connected to a dishwasher outlet, you may need to find a more appropriate position for connection.
The above steps complete the only type of installation carried out by PWS operators with regards to sink filtration units, in accordance with our Insurance cover. If installations differ from the instructions provided, ie copper pipe needs to be cut etc, then local plumbing codes apply and a qualified plumber must undertake this work.
Installation of Faucet
Using a small drill bit, drill a pilot hole on top of sink where it is to be positioned.	5mm Drill Bit/Drill
Using the 3/8" drill bit, drill a 3/8" hole through the base metal. Operate the drill slowly and carefully, especially when the drill is about to penetrate the metal. Always use a drop or two of oil in the hole.	3/8” Drill Bit/Drill
Mount the sink top faucet in the hole and using an adjustable wrench (or hand) to hold the faucet; tighten the 9/16" nut. A 9/16” tube spanner is ideal for this purpose.	Wrench 9/16” tube spanner
Screw the 7/16” John Guest female connector to the inlet of faucet, No tape is required.
Connect the tube from the outlet side of the twin system (this is the carbon cartridge side of the twin system) to the 7/16” John Guest fitting on Faucet.

Mounting the Purification System
Refer to customer: inquire if they would prefer the system to be mounted, or to sit on the floor of the cupboard. If preference is to be mounted, mark screw locations at the desired positions. Use the two holes on back of purification assembly mounting bracket for marker guides.	Marking Pencil Drill/Drill bits
Screw wood screws (not supplied with kit) with unit into marked positions. Leave screw heads out a little.	Screwdriver
Mount purification system onto screws.
If preference is not to fit on cupboard wall/backing, then ensure sufficient tubing is installed to lift out the unit and place into a bucket for future servicing.
Start up Procedure
With everything connected, turn on the water check for leaks.
Let the water run for at least 5-10 minutes. This flushes the carbon filters on first time use.
Close the sink top faucet. Check the system for leaks. The system is now ready for use.

Special Note:

National and Local plumbing laws may prohibit the initial fitting of a water filtration system by persons other than a licensed plumber.

Under sink filtration kits are generally equipped with DIY instructions for the use of a licensed plumber.

Please ensure that you abide by the appropriate plumbing rules and regulations in your State.

8.11 Softener Installations

There are subtle differences in the installation of a Softener system due to the size of the units and where they are located.

The following instructions are a guide on how to set-up and install, with the following image providing a typical example of a Softener set-up.

Mark out the area in which the unit needs to be installed. Ideally, this is close to the pump.
You need room for the vessel to sit and for the brine bin to sit next to the vessel
Set both items up.
Work out where the poly pipe will need to go, making sure it will be a clean and tidy set-up.
Leaving plenty of room around the softener for future servicing.
Have the centre tube inside the vessel ready for the resin to be installed.
Using your blue funnel, fill the vessel with resin supplied. You must cover the 20mm tube so no resin goes down.
Once the vessel has been filled with the required amount of resin, install the softener valve/head (Autotrol)
Now, it is time to connect your solenoid, poly pipe, gate valves and fittings, any necessary taps and tee’s for water samples.
The solenoid will stop any untreated water making its way to use while in regeneration.
Put the required amount of salt into the brine bin (2-3 bags)
The new valve/head programming should be all ready set-up and ready to go. (Refer to model instructions provided with the kit as start up procedure may vary).
You are now ready to start the pump and run the first water through the vessel.
Turn on the pump, open the gate valves slowly so not to force water through the system.
If the softener is supplying to a tank, water will now run to the tank.
If the system is supplying direct to irrigation, then try open a tap to make sure there is sufficient flow.
Check operation of the valve head, making sure all programs work – backwash, brine draw, rapid rinse, brine fill
Check for leaks.

Finally, depending on the location of the Softener set-up, the customer might consider building a cover around the system. Remember that access may be required not only to the Brine Bin and Ballast head unit, but to pumps and filtration systems.

This is a typical Softener set-up for a Bore system, established near the pump and located outdoors. A shed was subsequently built around this unit to provide additional protection.

8.12 Ultraviolet (UV) Installation

There are 4 key components to the UV system. Installation of these systems is quite often combined with a Twin Filter unit. For details of how to install a Twin unit, refer to Section 8.9, Installation of Whole of House systems.

The components are:

Stainless Steel UV Reactor Chamber
Ultra Violet Lamp
Quartz Thimble
Ballast (Power Supply)

VERY IMPORTANT: When assessing where to locate the UV system, you need to ensure you have enough room to remove and install the lamp and quartz. E.g. at least 1 metre.

For Vertical set-up; 1-meter above; whereas Horizontal set-up; 1-meter from the Ballast connection end.

8.12.1 Disinfecting before set-up

This is an imperative step, and a key difference between what PWS provides and our competitors.

The lines of the water supply system should be sanitized prior to the installation of the UV unit. This will ensure any traces of bacteria in the lines are removed prior to installation.

For details on Dosage rates and instructions for sanitising lines, refer to Section 6.0 of this Module

8.12.2 UV Installation

Install the UV steriliser on the discharge side of the pump at the closest point to water usage.
When installing the reactor in the vertical position:
1. Ensure that the outlet pipe from the filter is connected to the bottom inlet of the reactor
2. Mount the ballast at a higher level than the filters and reactor unit.
3. Ensure the outlet port faces upwards to eliminate air within the system
4. Finally, ensure you have enough room above the installation to remove the lamp and quartz during servicing
When installing the reactor in a horizontal position:
1. Ensure you have enough clearance to remove the lamp and quartz during servicing
2. Ensure the outlet port faces upwards to eliminate air within the system.
It is advisable to install isolation valves on both the inlet and outlet of the system. Hansen poly valves are ideal for this.
After you have mounted the unit and connected the plumbing fittings, firstly install the Quartz thimble.
Do not touch the quartz thimble with your fingers, use the cotton gloves provided.
1. If evidence of finger marks are on the quartz thimble or lamp, it is advisable to remove with methylated spirits
Carefully lower the quartz thimble into the reactor chamber.
Fit the o’ring onto the exposed end of the quartz thimble, use a little water if necessary, not silicone grease.
Carefully screw the knurled nut onto the reactor chamber and tighten by hand only.
Start the pump and partially open an outlet on the discharge.
Slowly fill the system with water, depress the red buttons on the top of the filter unit and expel all air from the filters.
When you are happy that the complete unit is filled, and all air is expelled, turn the outlet off, allow the pump to reach maximum pressure and shut down.
Check for leaks, especially within the quartz thimble.
When you are happy that no leaks exist;
1. Attach the 4 pins on the lamp to the electrical socket
2. Carefully lower the lamp inside the quartz thimble.
3. Do not drop the lamp into the chamber, as this will fracture the quartz.
Secure the electrical cap & turn on the power.
Observe that the lamp is lit; illumination can be seen through the plug at the base of the reactor chamber.

8.12.3 Ballast Controller Operation

There are various Ballast systems on the market. You may come across variations of older models that have been previously supplied by PWS Operators, or from other suppliers. If you are unfamiliar with a particular system, we recommend contacting the PWSA Head Office for instructions.

The Ballasts that we use are all IP65 rated, which means they are waterproof and suitable for external operation. However, these are supplied with weatherproof covers.

They have a very simple operation:

Green light = in service
Red Light & Alarm = will flash and sound when there is a problem
- Faulty Lamp
- Water ingress into quartz assembly
- Faulty Ballast.

8.12.4 Assembly Hints & Tips

Head unit screws

When joining two different metals together using screws such as Stainless Steel to Aluminium, a chemical reaction can occur, particularly from weather conditions, which will result in the screws fusing.

When the time comes for you to undo these screws, the task can be extremely difficult and sometimes impossible. The remedy of drilling out screws is a messy and timely process that would be better avoided.

When you are about to screw components together simply apply a small amount of silicone grease to the screw. The silicone grease will reduce the likelihood of these metals fusing.

This product has been sourced and is available via the PWS product ordering process: item (PW0-1) Food Grade Grease.

8.12.5 Frequently Asked Questions

Q. Is UV effective against Giardia and Cryptosporidium?

A. Yes, as a result of recent findings by academic researchers, it has been proven that UV is the best technology available to treat these Cysts.

The dose levels required to inactivate the cysts are really quite low and all of our products will provide a 99.9% reduction of both Giardia and Cryptosporidium.

Note; Appropriate pre-filtration is required to present acceptable quality water to the UV lamp for disinfection.

Q. Why should I disinfect my water supply?

A. Disinfection is recommended for all private water supplies, i.e. tank water etc.

We are well aware that bird and animal droppings as well as decaying leaf matter will always find its way into the rainwater tank.

It is well documented that eColi is the product of animal faeces and can cause many health problems.

By providing your own disinfection system you are insuring the safety of your water supply for you and your family.

Q. Why do I need the pre-filtration that you recommend?

A. UV systems need adequate filtration as microbes can potentially be shielded by suspended particles in the water supply and interferes with appropriate disinfection.

High quality filtration is critical to achieve optimum results.

Q. How much does a UV system cost to run?

A. UV systems are extremely economical to operate; a typical whole of house system operates on the same power requirement as a 40 watt globe.

Q. What are the annual maintenance requirements?

A. UV lamps have a life of approximately 9,000 hours, which means that a lamp must be replaced annually.

Whilst the lamp may still glow after that time; there will however, be not enough energy generated to provide adequate disinfection.

The quartz sleeve and the filter unit should be inspected bi0annually to ensure the continued disinfection of the system.

Note; If the filter(s) are blocked or inefficient then the water being presented to the UV may not be adequate.

8.13 Installing Reverse Osmosis (RO) Systems

There are various RO systems on the market, and PWSA is able to supply a few of these. While not a commonly recommended product for the majority of our customers, from time to time you may require installation or servicing of an RO system.

When working with (RO), we know that the RO membrane does most of the hard work of the filter system, and as such it needs protection.

Choose the correct filter cartridges and set the correct time limits for the expected duration of the filters life.

PWSA supplies the QR04 Reverse Osmosis units, which are a 4-stage system. The following instructions refer to the installation guide provided with the product.

8.13.1 Before you Start

Note: A licensed plumber is required if you are cutting copper lines.

Prior to installing the feed water assembly, please make sure that the following water conditions are met:

Feed water condition	Min	Max
Inlet Pressure	40 PSI	100 PSI
Temperature	40 deg F	100 deg F
pH Level	2	11
TDS Level	0 ppm	2000 ppm

All hoses are colour coded for ease of installation.

¼” red connects the feed water valve to the RO pre-filter
¼” black connects the membrane brine port to the drain connector
3/8” blue connects the post filter to the faucet
3/8” white connects the RO membrane product port to the storage tank

Specifications:

Filter Output @ 60 Psi	200 litres per day
RO System Dimensions (cm)	42 (W) x 32 (H) x 11 (D)
Tank Dimensions 8ltr (cm)	38 (H) x 23 (D)
Warranty	5 years
Micron Rating	0.0005 Micron

8.13.2 System Installation

1Installing the RO System

Taking into consideration ease of maintenance, find a convenient location above or beneath the bench top. Using the self-tapping screws provided, attach the filter to the cupboard wall (allowing approx. 50mm height for changing cartridges). The system may otherwise stand freely on the cupboard floor.

2Shut off the water supply

Locate the water shut0off valve (mini stop valve) for the cold water feed line. (To identify the hot and cold water pipes, turn on both the hot and cold water faucets. After the water is warm to the touch, feel the pipes under the sink).

Close the cold water shut off valve. Turn on the cold water faucet only to assure that the line is completely shut off and drained. (If there is no cold water shut off valve located under the sink, then turn off the main water supply at the entry to the house).

Warning: Feeing the system with hot water will damage the membrane.

3Attach Swivel Compression Tee

Unscrew braided hose from cistern tap. Screw in the swivel compression tee. Reattach braided hose.

4Installing the Drain Outlet Clamp Assembly

Select a location for the drain clamp above the ‘S’ Trap. Position the drain outlet clamp on the drainpipe. Allow adequate space for drilling.

Tighten the clamp with the “Tightening Screw”. Unscrew Quick Fit Connector. Using the opening in the drain outlet clamp, drill a ¼” hole in the drainpipe. Clean debris from the clamp. Reattach Quick Fit Connector.

NOTE: Locate the drain connection away from any electric garbage disposal units.

5RO Faucet Installation

The RO water faucet may be installed on any flat surface over 50mm (2”) in diameter. (Remember: check the underside of the location for interference).

Make a small indent using a centre punch to mark the desired drilling location. Drill a pilot hole with a metal drill. Enlarge the hole using a ½” metal drill bit.

Once the hole has been drilled, install the faucet. Be sure the faucet body, chrome plate, and the black rubber washer are placed above the sink. Install the black locating washer, the lock washer and nut underneath, then tighten firmly while aligning faucet in the desired direction.

Install the female Quick Fit Connector to the end of the faucet.

6Storage Tank

Place the storage tank in a convenient position. The tank can be placed on it’s stand, either upright or on it’s side. Attach the Storage Tank Tap using a few wraps of plumbers tape.

7Connect Tubing to System

Make sure the end of the hose is cut straight, ensuring it has an even clean surface.

8Activating the System for the First Flush

Ensure storage tank tap and pure water faucet are turned off. Slowly turn the ministop valve until fully open. Check plumbing assembly, RO system and drain lines are secure and free from leakage.

If system is free from leakage, open pure water faucet and wait until the tap starts dripping. When dripping occurs, open up the tank tap and close the pure water faucet. Wait a few hours for the storage tank to fill (the time taken will depend on water pressure, temperature and tank size).

Open the RO water faucet and let the water flow until all the air has been expelled from the system. Water may be slightly discoloured and have some aeration. This will take a few minutes. Close the RO water faucet. In 15 minutes, check the connections for leaks and correct if necessary.

NOTE: when away or extended periods of time, shut off the water supply.

TIP: Remember the Carbon Filter always proceeds the R/O membrane as chlorine destroys all membranes.

8.0 Filtration / Sterilisation Supply (Assembly)

You must be logged in to access this course

Module 1 - The Franchise System

Module 2 - Administration and PODAC/ITF

Module 3 - Technical Information and OH&S

1.0 Background of the Water Industry

2.0 Australian Drinking Water Guidelines (ADWG) Introduction

3.0 Common Water Borne Diseases

4.0 Chemicals and Substances found in Water

5.0 Pristine Water Systems Chemicals and Treatments

6.0 Water Testing/Analysis & Results

7.0 Industry Certifications

8.0 Safe Work Australia / Workplace Health & Safety / Occupational Health & Safety

9.0 Filtration & Ultraviolet Products

10.0 Types of Tanks

11.0 Other PWS Products & Equipment

12.0 Glossary of Terms

Module 3 - Appendix

Module 3 Quiz

Module 4 - Operations - Standards

1.0 Introduction

2.0 The PWS Process

3.0 Planning your Work Schedule

4.0 Planning Product Ordering

5.0 Water Testing

6.0 AqueousPro™ 50 Water Sanitiser

7.0 Water Tank Cleaning

8.0 Filtration / Sterilisation Supply (Assembly)

9.0 Ongoing Service and Maintenance

10.0 PWS Standards

11.0 AqueousAir™ Assembly & Installation Instructions

Module 4 - Appendix

Module 4 Quiz

Module 5 - Sales, Marketing, Quoting & Invoicing

1.0 Introduction

2.0 Advertising & Marketing

3.0 Selling PWS / Selling Yourself

4.0 Assessments & Quoting

5.0 Invoicing

Module 5 Appendix

Module 5 Quiz

Module 6 - Equipment Maintenance

1.0 Introduction

2.0 Vehicle Maintenance

3.0 Equipment Maintenance

Module 6 Quiz

In-Field Quick Reference Guide Content
